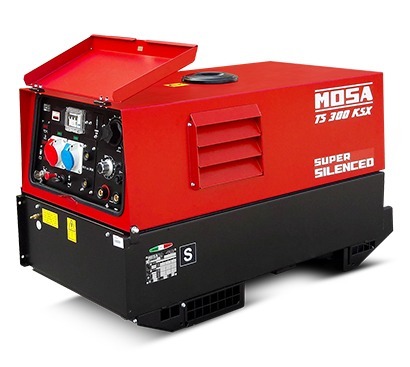

The engine-driven welders TS 300 KSX/EL are professional machines with electronic control of the welding current capable of delivering up to 300 A with a duty cycle of 60%.
Equipped with a KOHLER KD 477-2 diesel engine and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 10 kVA.
The welding current is continuous and can weld any kind of electrode (rutile, basic, cellulose) up to 6 mm in diameter. Also available is an optional remote welding control allowing welding current adjustment up to 20 metres from the welder.
Te TS 300 KSX/EL is a super-silent welder, designed to minimize sound emission.
Model TS 300 KSX/EL also features auto idle economizer which introduces the concept of "power on demand", allowing both fuel savings and reduced engine wear.
Suitable for a wide range of uses including mobile welding, site fabrication, maintenance and pipeline construction.
In according with CE regulation
WELDING
Current range, continuous: 20 ÷ 300A
Duty cycle: 300A 60% - 250A 100%
Open circuit voltage: 70 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Electronic regulation of welding current
A.C. generator, single-phase and three-phase
Aux power also available while welding
GENERAL
Dry weight TS 300 KSX/EL: 375 kg
Dimensions: 1320x790x750 mm
Measured acoustic power LwA (pressure LpA): 91 dB(A)(66 dB(A) @ 7m)
Guaranteed acoustic power LwA (pressure LpA): 92 dB(A)(67 dB(A) @ 7m)
