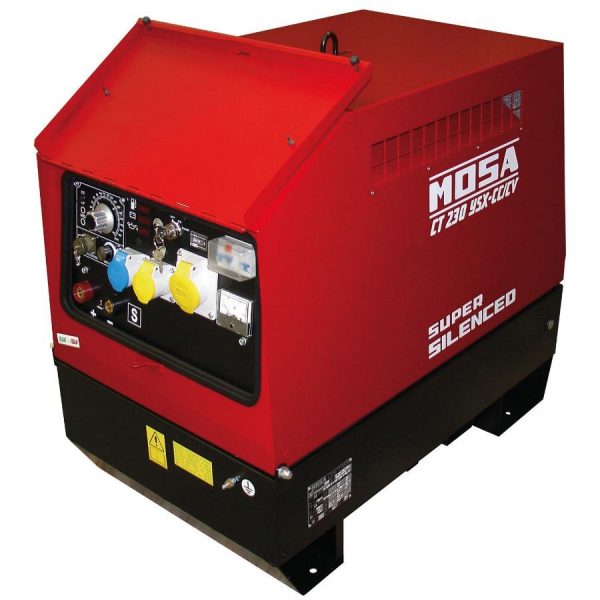

Mosa CS 230 YSX CC/CV Diesel Engine Driven Welder

Brand: Mosa

Code: ORK184011

Comes with Free Standard set of welding leads

Highlights
• Mosa CS 230 SX CC/CV Mobile Welding plant
• Free Delivery within Ireland Now!

The Mosa CS 230 YSX CC/CV is relatively new to the Mosa line up.  A Diesel Engine driven welder, the Mosa CS 230 YSX is powered by a quality and reliable, 4 Stroke YANMAR L 100 N Engine with a Three-phase asyncronous alternator.  Offering three-phase generation of 6 kVA  and single-phase generation of 5 kVA.  This Diesel welder generator is capable of a maximum welding current of 210 Amps at 60% Duty Cycle (MMA) and 180 Amps at 100% Duty Cycle (TIG).  The Yanmar engine delivers both welding and generator power whilst super silent, thanks to its compact canopy design specifically designed to minimise sound emissions.

The engine driven Mosa welder CS 230 YSX is a Constant Current (CC), Constant Voltage (CV) professional machine with electronic control of the welding current.  CC and CV welding output modes are selectable:

In Constant Current (CC) Mode, it is possible to choose between a characteristic with adjustable arc force, suitable for MMA and TIG welding (With Scratch Start).

In Constant Voltage (CV) mode it is possible to MIG weld using the optional WF4 Mosa Wire Feed Unit.  Capable of Wire welding both Solid and Flux Cored wires.

The Mosa CS 230 YSX CC/CV is able to weld rutile, basic and cellulose electrodes of any kind, up to 4mm and takes full advantage of the engines power output using MOSAs signature “Power Optimizer” technology.  With the ” Power Optimizer ” it is possible to ensure stable and optimal operation in all the welding conditions, exploiting the full power of the engine.  This is a specific control technique aimed at preventing the engine overload when working near to its power limit.

A superior weld quality and a stable arc when welding is delivered using the integrated Mosa Chopper System (High Frequency 30kHz).

WELDING

Current range,continuous:              20 ÷ 210A

Duty cycle:                                         210A 60% – 180A 100%

Open circuit voltage:                        65 V

Arc welding source in D.C. welding

SMAW: Shielder Metal Arc Welding (Stick)

GTAW: Gas Tungsten Arc Welding (TIG)

Gas Metal Arc Welding (MIG)

High frequency control of welding current and voltage

A.C. generator, single-phase and three-phase

Aux power also available while welding

GENERAL

Power Optimizer (patent pending)

Dry weight:230 kg

Dimensions:1020x645x930 mm

Measured acoustic power LwA (pressure LpA): 91 dB(A)(66 dB(A) @ 7m)

Guaranteed acoustic power LwA (pressure LpA):92 dB(A)(67 dB(A) @ 7m)

VERSIONS ON REQUEST

Auxiliary output 230I-110I-CTE : 1×230 16A 2P+T CEE – 1×110 32A 2P+T CEE – 1x110V 16A 2P+T CEE
