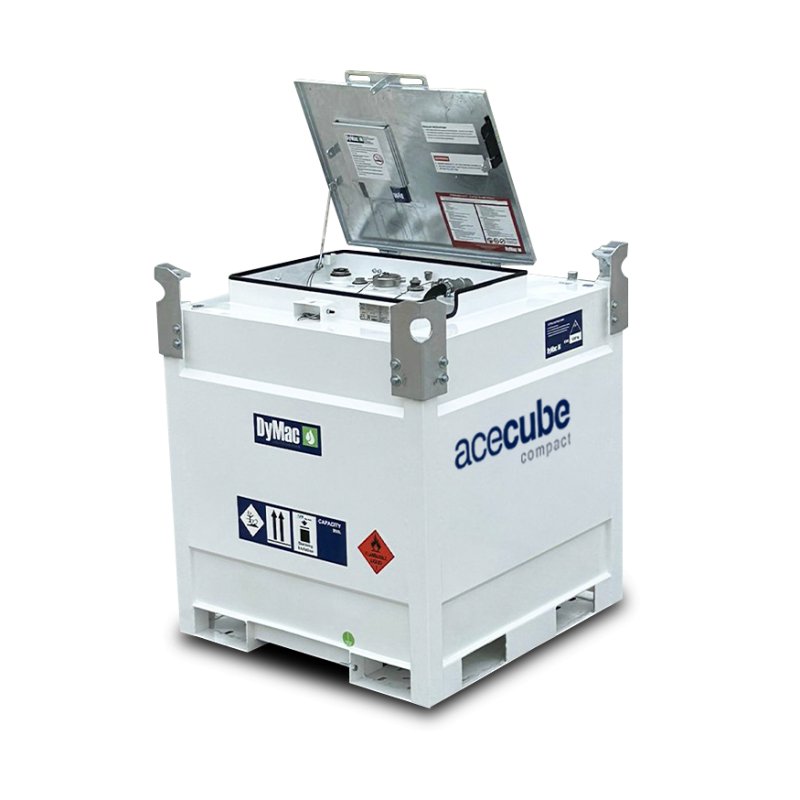

The AceCube Compact tank - the portable fuel storage solution for the construction, industrial, agricultural, and farming sectors. Designed for maximum versatility, this transportable fuel tank is supplied with a DIESEL PUMP & DIGITAL FLOW METER
For use in many direct fuelling applications, including bulk fuel supply for on-site water pumps, heavy machinery, and standby or critical power generators.
Engineered with durability in mind, each AceCube Compact features four galvanised stacking corners and a large primary hatch lid for easy access. Its innovative, fully bunded design provides 110% spill containment, ensuring superior protection against leaks, fuel evaporation, and emissions. This makes the AceCube Compact an ideal secondary or standby fuel source for quarries, construction sites, industrial facilities, and farms.
The tank includes a secure, lockable equipment compartment designed to house the fuel-dispensing equipment
Built from high-grade steel, the AceCube Compact is UN ADR-approved for safe transport of diesel and other fuels. Its robust, double-bunded construction and transport-ready design make it a reliable choice for businesses seeking safe, compliant, and efficient mobile fuel storage.
SPECIFICATION
Nominal Capacity - 849 Litres
95% Safe Fill: 807 Litres
Outer Tank Thickness - 2mm
Inner Tank Thickness - 2mm
Empty Weight - 402kg
P.Vent - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
Spare - 1x 1.5" BSP Internal Threaded Coupling with 1.5" Galvanised MS Plug.
Fill - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
Feed - 1x 1.5" BSP Internal Threaded Coupling, 1.5" Male with 0.5" Female Hex Adaptor, 0.5" Male with 3/8" Female Threaded Adaptor, BSP External Threaded CS Downpipe with 3/8" Galvanised MS Plug.
E.Vent - 1x 1/4" BSP Internal Threaded Coupling with 1/4" E.Vent (Actuant).
Fill Vent - 1x 2" BSP External Threaded Pipe with 2" BSP Cap.
Feed Assembly - 1x 2" BSP Internal Threaded Coupling, 2" Male with 1" Female Hex Adaptor, 1" BSP External Threaded Downpipe with
HDPE NRV, 1" BSP External Threaded Elbow, 1" Female T-Joint with 2x1" Galvanised MS Plug.
Level Gauge - 1x 1.5" BSP Internal Threaded Coupling with 1.5" Level Gauge.
Free Vent - 1x 0.5" BSP Internal Threaded Coupling with 0.5" Free Vent.
Drain - 1x 1" BSP External Threaded CS Galvanised Downpipe with 1" Cap.
Dipstick - 1x 5mm Dia x 1046L, Aluminium/Galvanised Mild Steel Rod.
Approvals & Certifications
CE Marked
UN 31 A/Y Complpiant Design
Lifting when full
Vibration Tested
